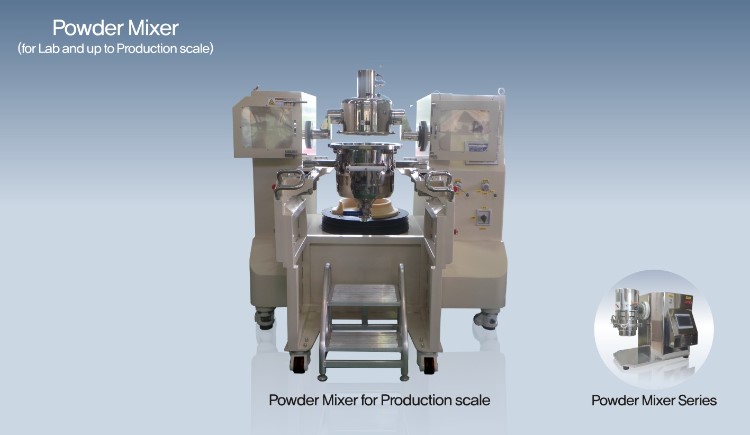

Designed for production scale of mixing and pulverizing (for the dried sample)

The knife impeller with the high sheared energy rotates in the chamber, at the same time the mixing chamber turns upon side axis for avoiding dead volume while treating dreid sample.

This simultaneous movement affects the homogeneous mxing and particle size reduction of dried sample.

*Designed as turnning the mixing chamber for avoiding dead volume during operation

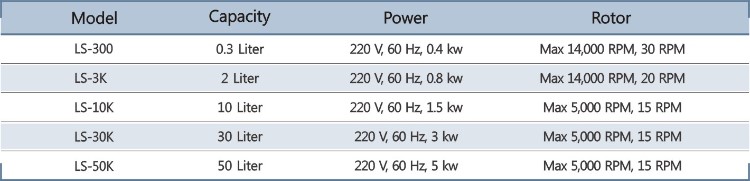

*The max turnning speed of mixing chamber : 15 rpm for the powder mxier of 10 L, 30 L, 50 L each

*The max speed of knife impeller :5,000rpm ( for powder mixer of 10 L, 30 L, 50 L each)

*Power ( powder mixer of 10 L) : 1.2 kw and and  2.5 kw for powder mixer (30 L and 50 L each)

*The best mixer for dispesring and mixing dried samples (from 50 mm to 50~200 ㎛)

*Designed for the particles to be mixed and reformed

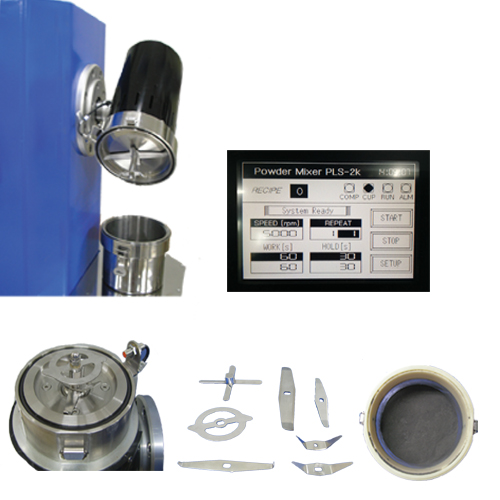

*Controller of timer, step sequences, hold time, memory (10 ea) and recall

*Number of axis for holding the mixing vessel : 2 ea

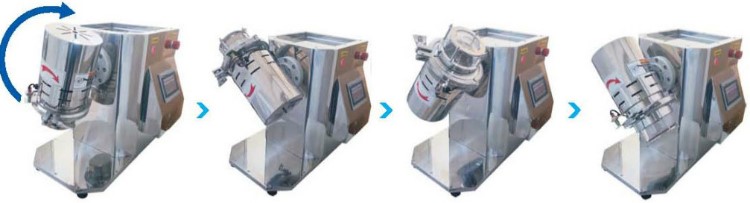

Motion of powder Mixer 300 ml (Principle of movement for production scale is same with this lab equipment)

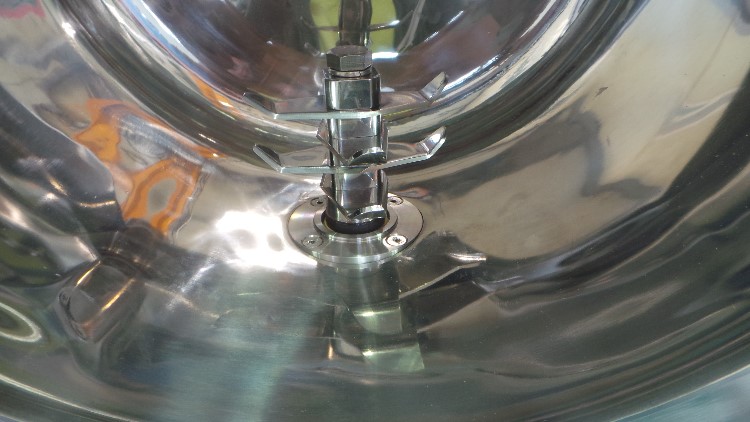

1st main Knife Impeller (inside powder mixer 50L)

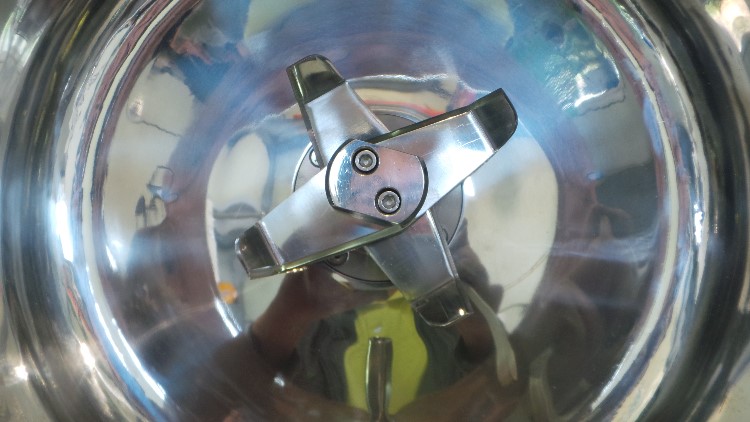

2nd side Impeller (inside powder mixer 50 L)

Using for the application of paint, pigment, ceramic material, pharmaceutical and cosmetcic etc
