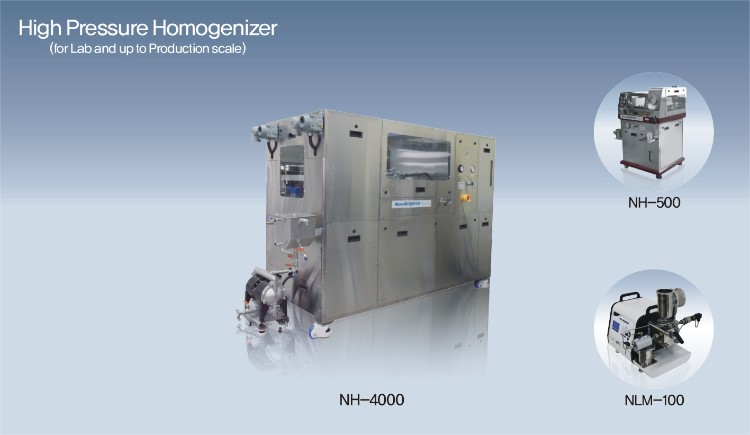

NH 4000 production unit : High Pressure Homogenizer designed for Ultra dispersion with high pressurized fluid

The NH4000 machine has been designed for total quality control and in order to guarantee an high number of customized solutions and full traceability. The multi-slotted fixed-geometry interaction chambers impact identical high sheared rates to product formulations as are performed on lab scale interaction chamber. NH4000 generates up to 1,500 bar(21,744 psi) operating pressure for premium results at an affordable cost.

Heat exchanger (coil type cooling system, NH 4000)

Digital pressure sensor (NH 4000)

Diamond cell and v/v assembly(NH 4000)

Controller integration version(NH 4000)

 Tepmpered glass for protection(NH 4000)

High pressure resistant HEAD(NH 4000)

*Repeatable,uniform particle size results to submicron distributions with guaranteed scaleup from R&D to full production

*Broadrange of throughput in continuous or batch mode ; the machine can process at awide range of pressure and flows

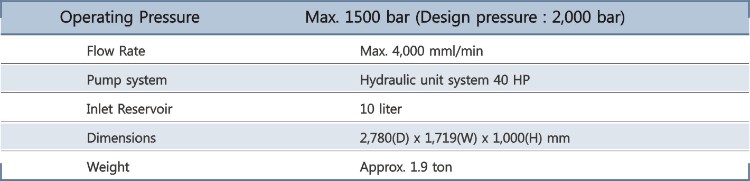

*Operates at pressures up to 1,500 bar(21,755 psi) ;designed pressure  : 2,000 bar, 29,000 psi)

*Proven to be highly reliable at operating pressuresup to 1,500bar in pilot and production environments

*Generates the highest shear rates of any fluidprocessor on the market, which results most often in achieving desired productquality in a single pass

*Highly durable intensifier pumping system isefficient at ultra high pressures

*High-pressure plunger seals and check valves

*Back flusing v/v

*NH 4000 unit comes standard with two alternatedintensifier pumps for increased flow rate

*Coned and threaded tubing and fittings

*In-line cleaning with no disassembly required

*All stainless steel construction

*Highest shear rates of all available competitivedevices

*Easy in-line cleaning and simple maintenance

*Automatic operations, PLC controller

*Chamber sets are configured to suit applicationrequirements

*Explosion-proof configuration for hazardousenvironment (option)

*Steam-in Place(SIP) for aseptic manufacturing

*Clean-in Place(CIP) for sanitary manufactruring

Sample test (NH 4000)
